Module Peltier TEG, livraison directe – Test et Avis

Blog > Module Peltier TEG, livraison directe – Test et Avis

.
.

Description:
Heating side is empty

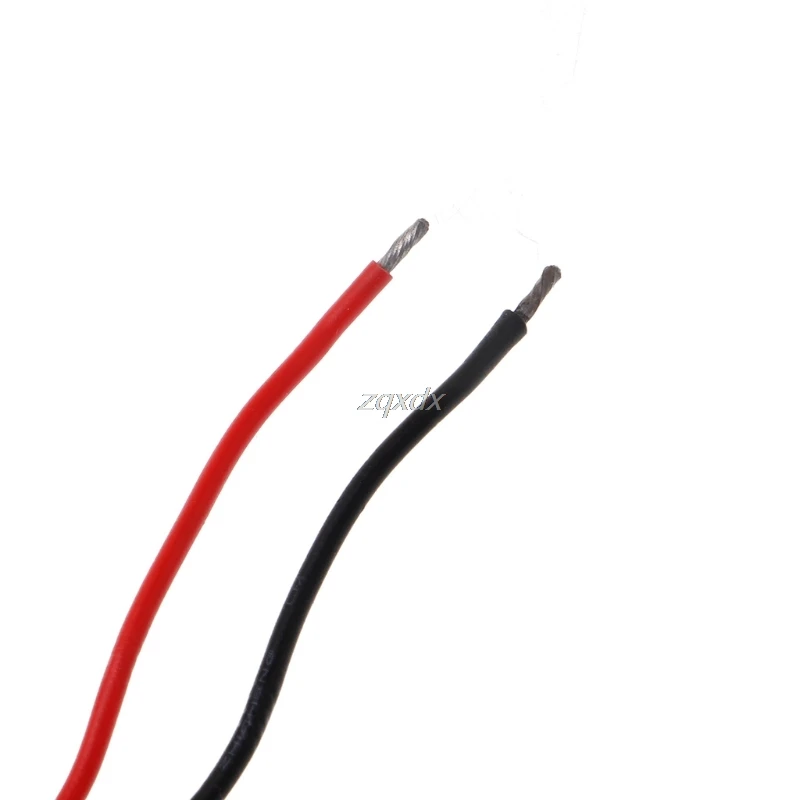

Red wire to positive, black wire to the negative, it generate electricity when the temperature difference happened

20 degree temperature difference: open-circuit voltage 0.97V,generated current: 225MA
40 degree temperature difference: open circuit voltage 1.8V, generated current: 368MA
60 degree temperature difference: open circuit voltage 2.4V, generated current: 469MA
80 degree temperature difference: the open circuit voltage 3.6V, generated current: 558MA
100 degree temperature difference: open circuit voltage 4.8V, generated current: 669MA

Note: The above values are for reference only, the wiring in actual use, and the step-up board, there will be loss of current

Specifications:

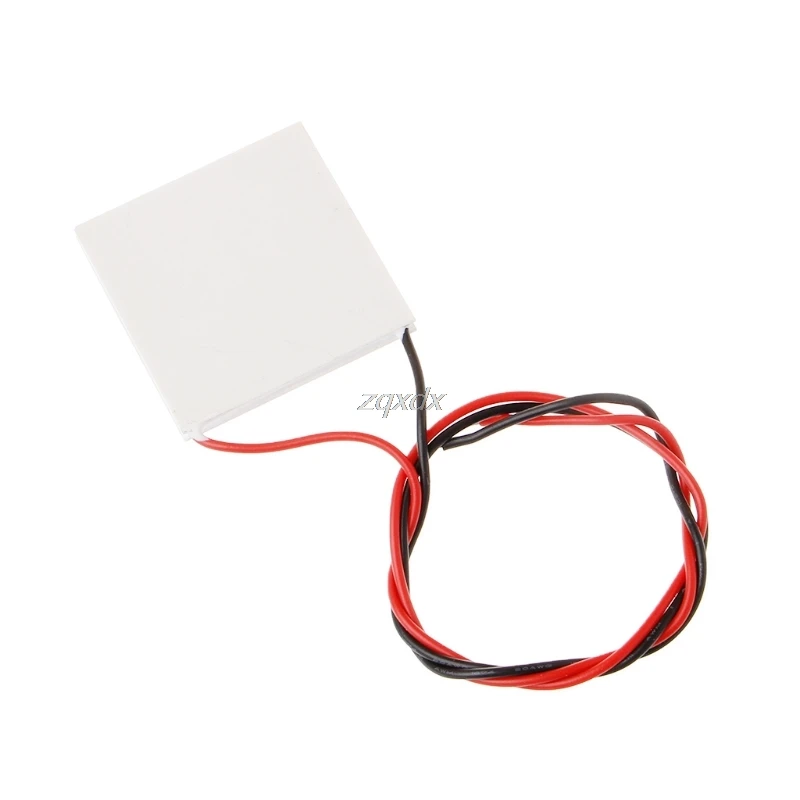

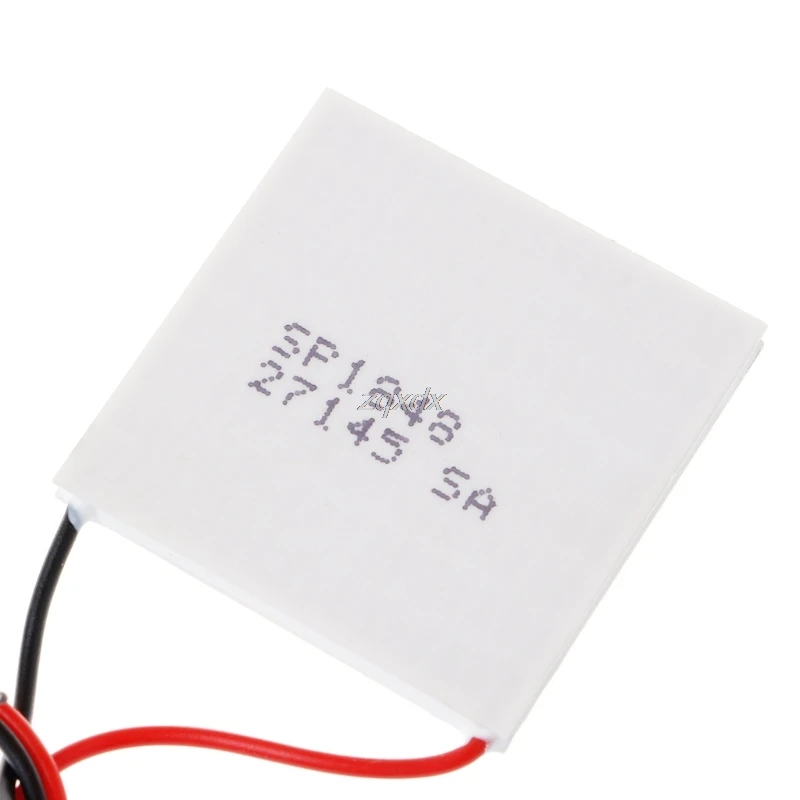

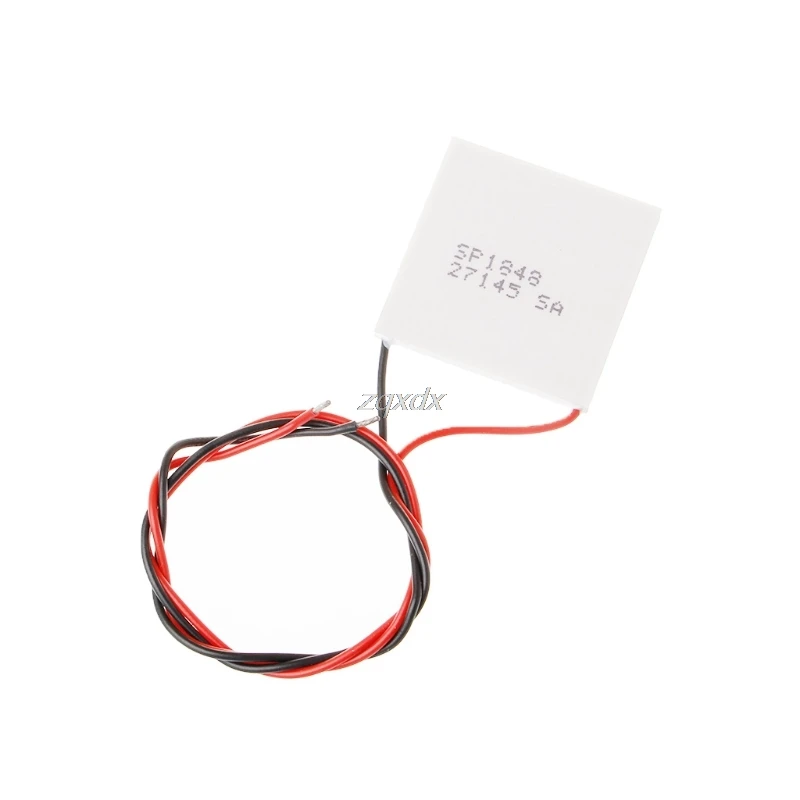

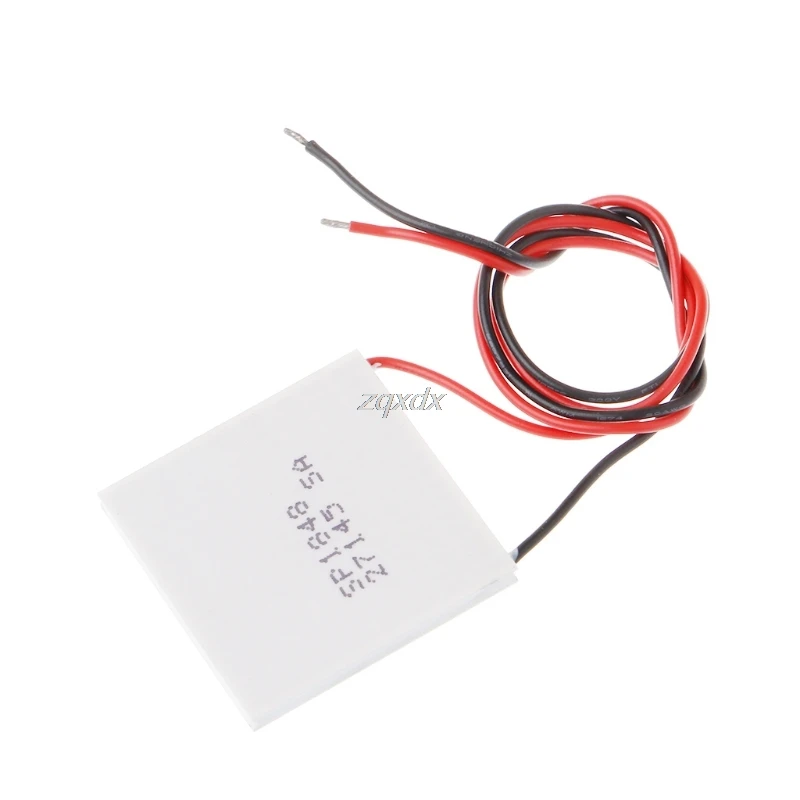

Model: SP1848-27145
Color : White
Working Environment: -60~125°
Thermoelectric parameter:

Temperature electromotive force (a): > 190x uV/ °
Conductivity: 850~1250Ω -1.cm-1

Thermal conductivity (K): 15~16×10-3-W/° cm

Optimum value (Z): 2.5 ~ 3×10-3W/°
Lead Length: about 30cm

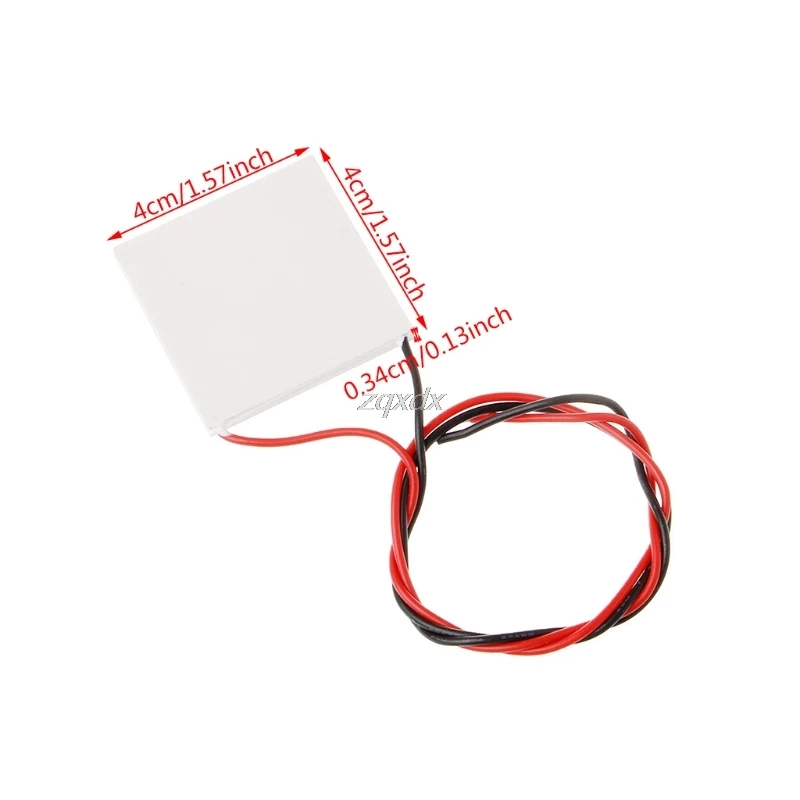

Size: 4x4x0.34cm/1.57×1.57×0.13inch
Quantity: 1 Pc
Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package Contents:
1 x Thermoelectric Power Module
